Volvo Penta Twinpack power generators 1.500 r.p.m and 1.800 r.p.m Diesel
800 bis 1.267 kVA Volvo Twinpack
| Power generator |
kVA 100 % PRP* |
Engine type |
| WA-V 800 C |
800 | TAD1344GE |
| WA-V 920 C |
913 | TAD1345GE |
| WA-V 1.000 C |
1.000 | TAD1641GE |
| WA-V 1.200 C |
1.188 | TAD1642GE |
| WA-V 1.280 C |
1.267 | TAD1643GE |
*Prime Power PRP. Maximum power for variable load, no time limit per year. The average 24 hours operation should not exceed 80% of that power. For control purposes an thrust harder Maschinery is an overload of 10% for 1 hour within 12 hours permitted. Mode according to ISO 8528. The maintenace is to be considered.
Power and consumption Volvo Twinpack
| Power generator | Power KWm. |
Consumption 100 % Last PRP |
| WA-V 800 C |
2 x 354 KW | 163,00 L/h |
| WA-V 920 C |
2 x 388 KW | 181,00 L/h |
| WA-V 1.000 C |
2 x 430 KW | 203,00 L/h |
| WA-V 1.200 C |
2 x 503 KW | 232,00 L/h |
| WA-V 1.280 C |
2 x 536 KW | 254,00 L/h |
Tank capacity and length Volvo Twinpack
| Power generator | Tank capacity in L |
Length in mm |
| WA-V 800 C |
4.500 | 12.141 |
| WA-V 920 C |
4.500 | 12.141 |
| WA-V 1.000 C |
4.500 | 12.141 |
| WA-V 1.200 C |
4.500 | 12.141 |
| WA-V 1.280 C |
4.500 | 12.141 |
Width and height Volvo Twinpack
| Power generator | Width in mm |
Height in mm |
| WA-V 800 C |
2.432 | 2.585 |
| WA-V 920 C |
2.432 | 2.585 |
| WA-V 1.000 C |
2.432 | 2.585 |
| WA-V 1.200 C |
2.432 | 2.585 |
| WA-V 1.280 C |
2.432 | 2.585 |
Basic equipment Volvo Penta power generator
Reference conditions
1.000 mbar, 25°C, 30% relative humidity. Performance according to ISO 3046th.

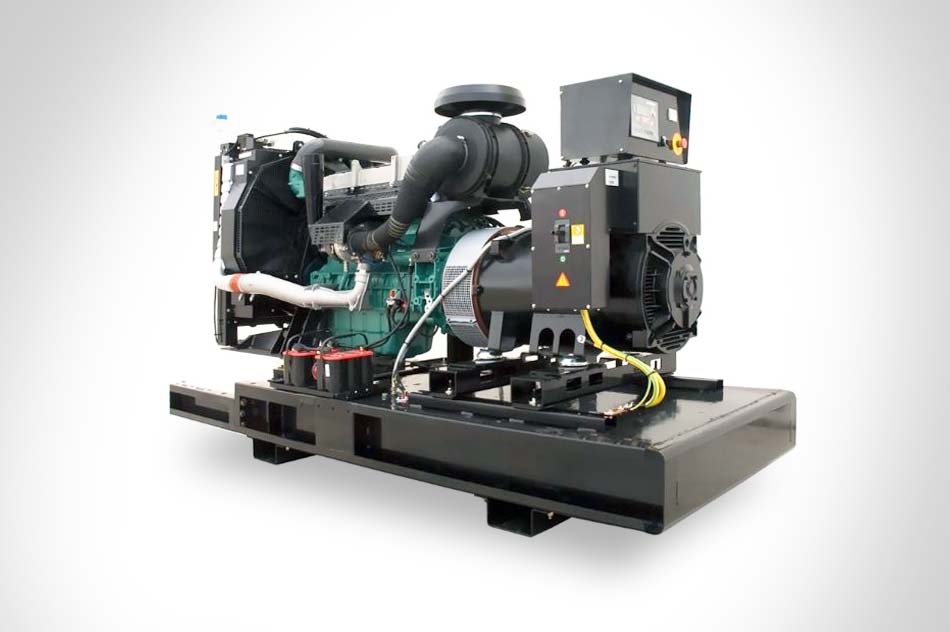

Power generator
The complete power generatorset is mounted on a steel base frame. On the steel base frame are specially designed devices, for lifting with a crane or Forklift. The diesel engine and the alternator are connected to a SAE-flange, that even a longer period of operation no possibility of an adjustment exists. The daily fuel tank is integrated in the steel base frame. The starter batteries of 12 or 24 volts are fixed on the steel base frame. Preheating-system 230 Volt DC.
Engine
Volvo industrial diesel 4-stroke direct injection, watercooled 1.500 rpm (50 Hz). Low oil and fuel consumption with long maintenance intervals make a very economic engine application.
Alternator
Mecc Alte alternator, brushless self-exciting, self-regulating with electronic voltage regulator (AVR) according to VDE 0530, 400/230 volts, 4-pole, insulation class H.
Control Panel
Manual start-stop-system with engine shutdown during monitoring, when low oil pressure (LOP), High temperate (HWT) and overspeed. Alternator switch, 3-pole with thermal and magnetic protection. Frequency meter, hours counter, voltmeter, ampere meter, optical and acoustic alarm. Electronic engine speed governor, AMF automatic control panel with ATS, for parallel operation with the mains supply or peak looping operation.
Options
For all power generator is a wide range of accessories available.
Technical changes
We keep ahead.
All specified data “Volvo generator” included in standard delivery.
